    Split Body Floating Ball Valve Reduced Port Class 600

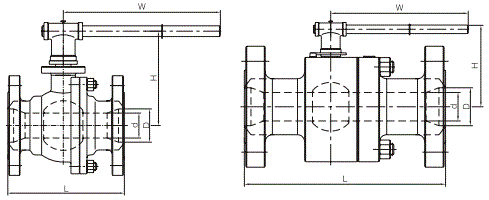

    1. Technical G.A Drawing of Split Body Floating Ball Valve  Reduced Port Class 600

    SLPIT BODY FLOATING BALL VALVE RB 600LB

    2. Dimension & Weight of Split Body Floating Ball Valve Reduced Port Class 600

    CLASS 600 REDUCED PORT
    NPS
    L-RF
    L-RTJ
    L-WE
    Weight(kg)
    3/4"×1/2"
    165
    167
    165
    66
    150
    4
    1"×3/4"
    190
    190
    190
    88
    170
    5.5
    1-1/2"×1"
    216
    216
    216
    90
    250
    10.5
    2"×1-1/2"
    241
    241
    241
    120
    400
    20
    2-1/2"×2"
    330
    333
    330
    135
    400
    25
    3"×2"
    356
    359
    356
    135
    400
    29
    3"×2-1/2"
    356
    359
    356
    150
    400
    42
    4"×3"
    432
    435
    432
    164
    400
    59
    6"×4"
    432
    435
    432
    224
    995
    95
     1) All dimensions are in mm unless otherwise specified.
     2) All ball valves are furnished with anti blow-out stem, fire safe and anti-static design.
     3) Design standards: API 6D / API 608 / ASME B16.34.
     4) Face to Face dimensions are according to ASME B16.10.
     5) Inspected & Tested according to: API 598 / API 6D.
     6) Material selection as per "Introduction to Ball Valve: Materials".

    Views:   Author:hbmetals  Date:15/04/04
