Split Body Floating Ball Valve Reduced Port Class 900

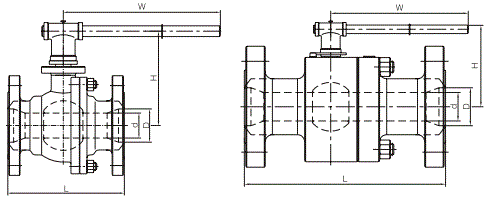

1. Technical G.A Drawing of Split Body Floating Ball Valve Reduced Port Class 900
2. Dimension & Weight of Split Body Floating Ball Valve Reduced Port Class 900
|
CLASS 900 REDUCED PORT
|
||||||||
|
NPS
|
D
|
d
|
L-RF
|
L-RTJ
|
L-WE
|
H
|
W
|
Weight(kg)
|
|
3/4"×1/2"
|
19
|
13
|
229
|
229
|
229
|
75
|
140
|
7
|
|
1"×3/4"
|
25
|
19
|
254
|
254
|
254
|
91
|
180
|
9.5
|
|
1-1/2"×1"
|
38
|
32
|
305
|
305
|
305
|
108
|
250
|
16.5
|
|
2"×1-1/2"
|
49
|
38
|
368
|
371
|
368
|
133
|
400
|
23
|
|
2-1/2"×2"
|
62
|
49
|
419
|
422
|
419
|
150
|
500
|
32
|
|
3"×2"
|
74
|
49
|
381
|
384
|
381
|
150
|
500
|
42
|
|
3"×2-1/2"
|
74
|
62
|
381
|
384
|
381
|
155
|
500
|
53
|
|
4"×3"
|
100
|
74
|
457
|
460
|
457
|
160
|
500
|
65
|
|
6"×4"
|
150
|
100
|
|
|
|
|
|
|
1) All dimensions are in mm unless otherwise specified.
2) All ball valves are furnished with anti blow-out stem, fire safe and anti-static design.
3) Design standards: API 6D / API 608 / ASME B16.34.
4) Face to Face dimensions are according to ASME B16.10.
5) Inspected & Tested according to: API 598 / API 6D.
6) Material selection as per "Introduction to Ball Valve: Materials".
