ASME B16.20 Type BX Ring Gasket Part 2

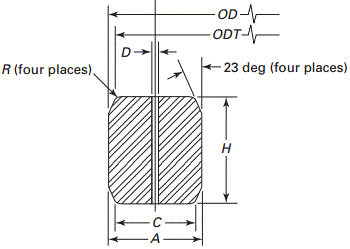

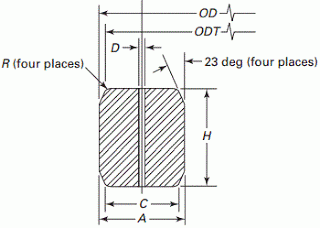

1. Drawing of Type BX Ring-Joint Gasket Part 2

2. Dimensions of Type BX Ring-Joint Gasket Part 2

Ring Number	Nominal Size	Outside Diameter of Ring, OD	Height of Ring, H	Width of Ring, A	Outside Diameter of Flat, ODT	Width of Flat, C	Hole Size, D
BX-162	422	475.49	14.22	14.22	473.48	12.22	1.5
BX-163	476	556.16	30.10	17.37	551.89	13.11	3.0
BX-164	476	570.56	30.10	24.59	566.29	20.32	3.0
BX-165	540	624.71	32.03	18.49	620.19	13.97	3.0
BX-166	540	640.03	32.03	26.14	635.51	21.62	3.0
BX-167	680	759.36	35.86	13.11	754.28	8.03	1.5
BX-168	680	765.25	35.86	16.05	760.17	10.97	1.5
BX-169	130	173.51	15.85	12.93	171.27	10.69	1.5
BX-170	168	218.03	14.22	14.22	216.03	12.22	1.5
BX-171	218	267.44	14.22	14.22	265.43	12.22	1.5
BX-172	283	333.07	14.22	14.22	331.06	12.22	1.5
BX-303	762	852.75	37.95	16.97	847.37	11.61	1.5

*1. All dimensions are in mm unless otherwise specified.

*2. Material and hardness specification for ring gaskets is listed.

*3. Tolerances of Type R ring gasket dimensions:

A = width of ring, +0.20, -0.00

C = width of flat, +0.15, −0.00

D = hole size, ±0.5
H = height of ring, +0.20, −0.00
OD = outside diameter of ring, +0.00, −0.15
ODT p outside diameter of flat, ±0.05
R = radius of ring, shall be 8% to 12% of the gasket height, H
23 deg = angle, ±0 deg 15 min.

*4. One pressure passage hole is required per gasket as illustrated.
The centerline of the hole shall be located at the midpoint of dimension C.

*5. Click to see "Pipe Sizes for Type BX ring gaskets for relative flange standards".
