ASME B16.20 Type R Ring Gasket Part 2

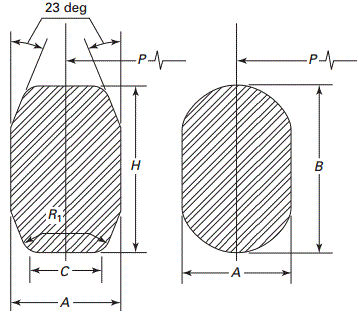

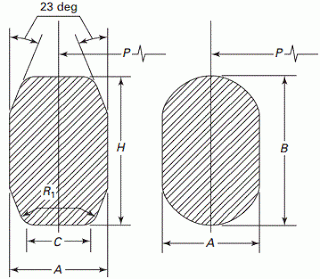

1. Drawing of Type R Ring-Joint Gasket(Oval & Octagonal) Part 2
2. Dimensions of Type R Ring-Joint Gasket(Oval and Octagonal) Part 2
|
Ring
Number |
Average Pitch
Diameter of Ring, P |
Width of
Ring, A |
Height of Ring
|
Width of Flat On
Octagonal Ring, C |
Radius in
Octagonal Ring, R1 |
|
|
Oval, B
|
Octagonal, H
|
|||||
|
R-59
|
396.88
|
7.95
|
14.2
|
12.7
|
5.23
|
1.5
|
|
R-60
|
406.40
|
31.75
|
39.6
|
38.1
|
22.23
|
2.3
|
|
R-61
|
419.10
|
11.13
|
17.5
|
16.0
|
7.75
|
1.5
|
|
R-62
|
419.10
|
15.88
|
22.4
|
20.6
|
10.49
|
1.5
|
|
R-63
|
419.10
|
25.40
|
33.3
|
31.8
|
17.30
|
2.3
|
|
R-64
|
454.03
|
7.95
|
14.2
|
12.7
|
5.23
|
1.5
|
|
R-65
|
469.90
|
11.13
|
17.5
|
16.0
|
7.75
|
1.5
|
|
R-66
|
469.90
|
15.88
|
22.4
|
20.6
|
10.49
|
1.5
|
|
R-67
|
469.90
|
28.58
|
36.6
|
35.1
|
19.81
|
2.3
|
|
R-68
|
517.53
|
7.95
|
14.2
|
12.7
|
5.23
|
1.5
|
|
R-69
|
533.40
|
11.13
|
17.5
|
16.0
|
7.75
|
1.5
|
|
R-70
|
533.40
|
19.05
|
25.4
|
23.9
|
12.32
|
1.5
|
|
R-71
|
533.40
|
28.58
|
36.6
|
35.1
|
19.81
|
2.3
|
|
R-72
|
558.80
|
7.95
|
14.2
|
12.7
|
5.23
|
1.5
|
|
R-73
|
584.20
|
12.70
|
19.1
|
17.5
|
8.66
|
1.5
|
|
R-74
|
584.20
|
19.05
|
25.4
|
23.9
|
12.32
|
1.5
|
|
R-75
|
584.20
|
31.75
|
39.6
|
38.1
|
22.33
|
2.3
|
|
R-76
|
673.10
|
7.95
|
14.2
|
12.7
|
5.23
|
1.5
|
|
R-77
|
692.15
|
15.88
|
22.4
|
20.6
|
10.49
|
1.5
|
|
R-78
|
692.15
|
25.40
|
33.3
|
31.8
|
17.30
|
2.3
|
|
R-79
|
692.15
|
34.93
|
44.5
|
41.4
|
24.82
|
2.3
|
|
R-80
|
615.95
|
7.95
|
…
|
12.7
|
5.23
|
1.5
|
|
R-81
|
635.00
|
14.30
|
…
|
19.1
|
9.58
|
1.5
|
|
R-82
|
57.15
|
11.13
|
…
|
16.0
|
7.75
|
1.5
|
|
R-84
|
63.50
|
11.13
|
…
|
16.0
|
7.75
|
1.5
|
|
R-85
|
79.38
|
12.70
|
…
|
17.5
|
8.66
|
1.5
|
|
R-86
|
90.50
|
15.88
|
…
|
20.6
|
10.49
|
1.5
|
|
R-87
|
100.03
|
15.88
|
…
|
20.6
|
10.49
|
1.5
|
|
R-88
|
123.83
|
19.05
|
…
|
23.9
|
12.32
|
1.5
|
|
R-89
|
114.30
|
19.05
|
…
|
23.9
|
12.32
|
1.5
|
|
R-90
|
155.58
|
22.23
|
…
|
26.9
|
14.81
|
1.5
|
|
R-91
|
260.35
|
31.75
|
…
|
38.1
|
22.33
|
2.3
|
|
R-92
|
228.60
|
11.13
|
17.5
|
16.0
|
7.75
|
1.5
|
|
R-93
|
749.30
|
19.05
|
…
|
23.9
|
12.32
|
1.5
|
|
R-94
|
800.10
|
19.05
|
…
|
23.9
|
12.32
|
1.5
|
|
R-95
|
857.25
|
19.05
|
…
|
23.9
|
12.32
|
1.5
|
|
R-96
|
914.40
|
22.23
|
…
|
26.9
|
14.81
|
1.5
|
|
R-97
|
965.20
|
22.23
|
…
|
26.9
|
14.81
|
1.5
|
|
R-98
|
1022.35
|
22.23
|
…
|
26.9
|
14.81
|
1.5
|
|
R-99
|
234.95
|
11.13
|
…
|
16.0
|
7.75
|
1.5
|
|
R-100
|
749.30
|
28.58
|
…
|
35.1
|
19.81
|
2.3
|
|
R-101
|
800.10
|
31.75
|
…
|
38.1
|
22.33
|
2.3
|
|
R-102
|
857.25
|
31.75
|
…
|
38.1
|
22.33
|
2.3
|
|
R-103
|
914.40
|
31.75
|
…
|
38.1
|
22.33
|
2.3
|
|
R-104
|
965.20
|
34.93
|
…
|
41.4
|
24.82
|
2.3
|
|
R-105
|
1022.35
|
34.93
|
…
|
41.4
|
24.82
|
2.3
|
*1. All dimensions are in mm unless otherwise specified.
*3. Tolerances of Type R ring gasket dimensions:
A = width of ring, ±0.20
B, H = height of ring, +1.3, −0.5
C = width of flat on octagonal ring, ±0.20
P = average pitch diameter of ring, ±0.18
R1 = radius in ring, ±0.5
23 deg = angle, ±0 deg 30 min.
*5. Related products:
|
ASME B16.20 METALLIC RING-JOINT GASKETS
|
|||||
