API 600 Pressure Seal Gate Valve 1500LB

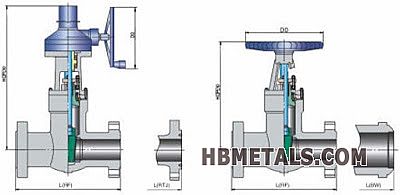

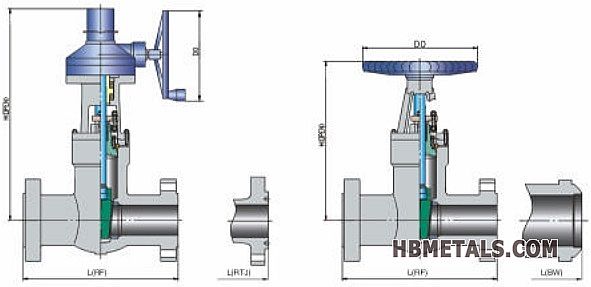

1. Typical Drawing of API 600 Pressure Seal Gate Valve Class 1500
2. Dimensions and Weight
|
Model
|
API 600 Pressure Seal Gate Valve Class 1500 Dimensions and Weight
|
||||||||
|
Size
|
L(RF)
|
L(RTJ)
|
L (BW)
|
Do
|
W(kg)
|
H(open)
|
|||
|
mm
|
in
|
RF
|
BW
|
Manual
|
Gear
|
||||
|
50
|
2
|
368
|
371
|
261
|
300
|
70
|
52
|
438
|
-
|
|
65
|
2 1/2
|
419
|
422
|
254
|
350
|
95
|
71
|
570
|
-
|
|
80
|
3
|
470
|
473
|
305
|
400
|
115
|
82
|
723
|
-
|
|
100
|
4
|
546
|
549
|
405
|
450
|
195
|
147
|
838
|
900
|
|
150
|
6
|
705
|
711
|
559
|
600
|
338
|
289
|
1042
|
1030
|
|
200
|
8
|
832
|
841
|
711
|
760
|
577
|
420
|
1235
|
1275
|
|
250
|
10
|
991
|
1000
|
864
|
800
|
1016
|
760
|
1440
|
1490
|
|
300
|
12
|
1130
|
1146
|
991
|
915
|
2010
|
1650
|
1650
|
1700
|
|
350
|
14
|
1257
|
1276
|
1067
|
-
|
2500
|
2003
|
-
|
1968
|
|
400
|
16
|
1384
|
1407
|
1194
|
-
|
2955
|
2313
|
-
|
2275
|
|
450
|
18
|
1537
|
1559
|
1346
|
-
|
3863
|
2454
|
-
|
2480
|
|
500
|
20
|
1664
|
1686
|
1473
|
-
|
5606
|
3200
|
-
|
2687
|
|
600
|
24
|
1943
|
1972
|
1943
|
-
|
6480
|
4900
|
-
|
3040
|
*All dimensions are in mm unless otherwise specified.
*Click to view the material selection of API 600 pressure seal gate valves.
*Basic end connection types: BW, RF, RTJ.
*Related products:
Views: 8415 Author：METALS INDUSTRIAL Date:2015/06/05
