API 600 Pressure Seal Gate Valve 900LB

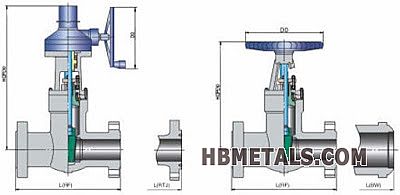

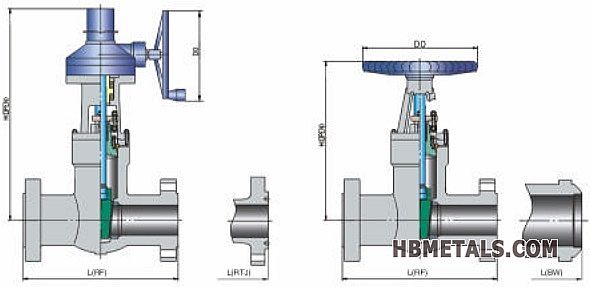

1. Typical Drawing of API 600 Pressure Seal Gate Valve Class 900
2. Dimensions and Weight
|
Model
|
API 600 Pressure Seal Gate Valve Class 900 Dimensions and Weight
|
||||||||
|
Size
|
L(RF)
|
L(RTJ)
|
L (BW)
|
Do
|
W(kg)
|
H(open)
|
|||
|
mm
|
in
|
RF
|
BW
|
Manual
|
Gear
|
||||
|
50
|
2
|
368
|
371
|
216
|
300
|
70
|
52
|
438
|
-
|
|
65
|
2 1/2
|
419
|
422
|
254
|
300
|
95
|
71
|
488
|
-
|
|
80
|
3
|
381
|
384
|
305
|
350
|
138
|
119
|
721
|
-
|
|
100
|
4
|
457
|
460
|
356
|
450
|
220
|
190
|
807
|
-
|
|
150
|
6
|
610
|
613
|
508
|
500
|
280
|
224
|
1058
|
1046
|
|
200
|
8
|
737
|
740
|
660
|
600
|
610
|
520
|
1225
|
1265
|
|
250
|
10
|
838
|
841
|
787
|
600
|
743
|
634
|
-
|
1500
|
|
300
|
12
|
965
|
968
|
914
|
650
|
1341
|
1198
|
-
|
1685
|
|
350
|
14
|
1029
|
1038
|
991
|
-
|
1560
|
1394
|
-
|
1830
|
|
400
|
16
|
1130
|
1140
|
1092
|
-
|
2100
|
1892
|
-
|
2145
|
|
450
|
18
|
1219
|
1232
|
1219
|
-
|
2750
|
-
|
-
|
2300
|
|
500
|
20
|
1321
|
1334
|
1321
|
-
|
3450
|
2950
|
-
|
2483
|
|
600
|
24
|
1549
|
1568
|
1549
|
-
|
5454
|
4800
|
-
|
2944
|
*All dimensions are in mm unless otherwise specified.
*Click to view the material selection of API 600 pressure seal gate valves.
*Basic end connection types: BW, RF, RTJ.
*Related products:
Tags:class 900 data sheet
