API 600 Gate Valve Class 1500

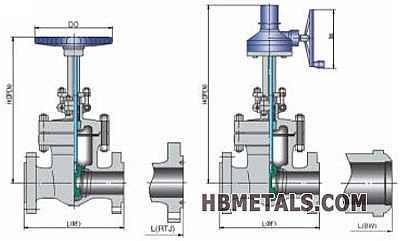

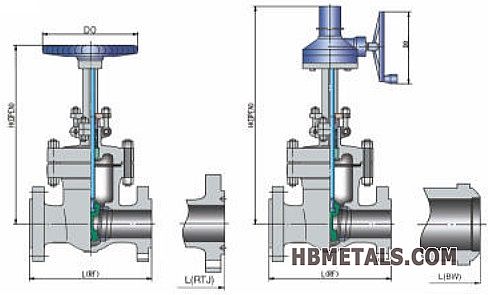

1. Typical Drawings of API 600 Gate Valve Class 1500
2. Basic Dimensions of API 600 Gate Valve Class 1500
|
Model
|
Z(5)40(1)H(W、Y)- 1500LB (C. P. R. PL. RL. I. H. V. A)
|
|||||||||
|
Class
|
Size
|
L(RF)
|
L(RTJ)
|
L (BW)
|
Do
|
WEIGHT(kg)
|
H(open)
|
|||
|
mm
|
in
|
RF
|
BW
|
Manual
|
Gear
|
|||||
|
1500Lb
|
50
|
2
|
368
|
371
|
368
|
300
|
95
|
80
|
475
|
-
|
|
65
|
2 1/2
|
419
|
422
|
419
|
330
|
128
|
110
|
526
|
-
|
|
|
80
|
3
|
470
|
473
|
470
|
400
|
181
|
145
|
735
|
-
|
|
|
100
|
4
|
546
|
549
|
546
|
450
|
275
|
220
|
838
|
900
|
|
|
150
|
6
|
705
|
711
|
705
|
600
|
627
|
560
|
1042
|
1221
|
|
|
200
|
8
|
832
|
841
|
832
|
700
|
1050
|
922
|
1385
|
1555
|
|
|
250
|
10
|
991
|
1000
|
991
|
800
|
2200
|
1950
|
1645
|
1900
|
|
|
300
|
12
|
1130
|
1146
|
1130
|
915
|
3300
|
2850
|
1750
|
2010
|
|
|
350
|
14
|
1257
|
1276
|
1257
|
-
|
4200
|
3550
|
-
|
2159
|
|
|
400
|
16
|
1384
|
1407
|
1384
|
-
|
6300
|
5500
|
-
|
2330
|
|
|
450
|
18
|
1537
|
1559
|
1537
|
-
|
7350
|
6400
|
-
|
2540
|
|
|
500
|
20
|
1664
|
1686
|
1664
|
-
|
9800
|
8500
|
-
|
2862
|
|
|
600
|
24
|
1943
|
*1972
|
1943
|
-
|
17800
|
15600
|
-
|
3135
|
|
*L to be confirmed by customers.
*All dimensions are in mm unless otherwise specified.
*Various types of end connections are available: SW, RF, FF, RTJ, BW and NPT, etc.
