API 600 Gate Valve Class 900

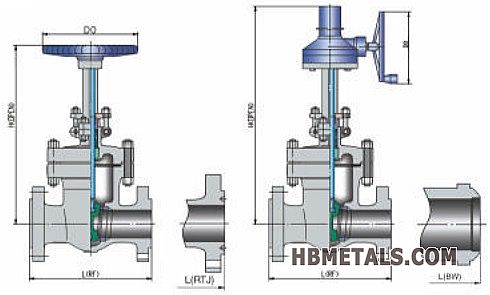

1. Typical Drawings of API 600 Gate Valve Class 900
2. Basic Dimensions of API 600 Gate Valve Class 900
|
Model
|
Z(5)40(1)H(W、Y)- 900LB (C. P. R. PL. RL. I. H. V. A)
|
|||||||||
|
Class
|
Size
|
L(RF)
|
L(RTJ)
|
L (BW)
|
Do
|
WEIGHT(kg)
|
H(open)
|
|||
|
mm
|
in
|
RF
|
BW
|
Manual
|
Gear
|
|||||
|
900Lb
|
50
|
2
|
368
|
371
|
368
|
300
|
55
|
43
|
508
|
-
|
|
65
|
2 1/2
|
419
|
422
|
419
|
300
|
75
|
59
|
580
|
-
|
|
|
80
|
3
|
381
|
384
|
381
|
350
|
95
|
79
|
606
|
-
|
|
|
100
|
4
|
457
|
460
|
457
|
450
|
135
|
111
|
796
|
-
|
|
|
150
|
6
|
610
|
613
|
610
|
500
|
280
|
258
|
957
|
1060
|
|
|
200
|
8
|
737
|
740
|
737
|
600
|
495
|
421
|
1172
|
1202
|
|
|
250
|
10
|
838
|
841
|
838
|
600
|
725
|
684
|
1300
|
1334
|
|
|
300
|
12
|
965
|
968
|
965
|
680
|
1341
|
1217
|
1655
|
1960
|
|
|
350
|
14
|
1029
|
1038
|
1029
|
-
|
1900
|
1750
|
-
|
2090
|
|
|
400
|
16
|
1130
|
1140
|
1130
|
-
|
2550
|
2364
|
-
|
2390
|
|
|
450
|
18
|
1219
|
1232
|
1219
|
-
|
3275
|
3009
|
-
|
2580
|
|
|
500
|
20
|
1321
|
1334
|
1321
|
-
|
3900
|
3574
|
-
|
2780
|
|
|
600
|
24
|
1549
|
1568
|
1549
|
-
|
5985
|
5325
|
-
|
3130
|
|
*L to be confirmed by customers.
*All dimensions are in mm unless otherwise specified.
*Various types of end connections are available: SW, RF, FF, RTJ, BW and NPT, etc.
