API 600 Gate Valve Class 300

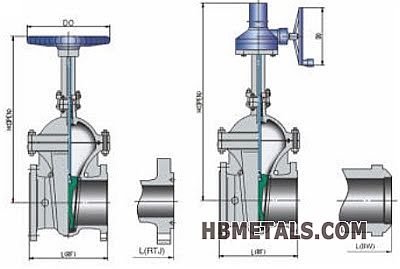

1. Typical Drawings of API 600 Gate Valve Class 300
2. Basic Dimensions of API 600 Gate Valve Class 300
|
Model
|
Z(5)40(1)H(W、Y)- 300Lb (C. P. R. PL. RL. I. H. V. A)
|
||||||||
|
Size
|
L(RF)
|
L(RTJ)
|
L (BW)
|
Do
|
WEIGHT(kg)
|
H(open)
|
|||
|
mm
|
in
|
RF
|
BW
|
Manual
|
Gear
|
||||
|
40
|
1 1/2
|
191
|
203
|
191
|
160
|
22
|
16
|
300
|
-
|
|
50
|
2
|
216
|
232
|
216
|
200
|
26
|
20
|
430
|
-
|
|
65
|
2 1/2
|
241
|
257
|
241
|
200
|
39
|
35
|
510
|
-
|
|
80
|
3
|
283
|
298
|
283
|
250
|
48
|
40
|
540
|
-
|
|
100
|
4
|
305
|
321
|
305
|
250
|
73
|
59
|
650
|
-
|
|
125
|
5
|
381
|
397
|
381
|
300
|
110
|
95
|
760
|
-
|
|
150
|
6
|
403
|
419
|
403
|
350
|
144
|
124
|
840
|
-
|
|
200
|
8
|
419
|
435
|
419
|
400
|
204
|
176
|
1040
|
1080
|
|
250
|
10
|
457
|
473
|
457
|
450
|
320
|
278
|
1280
|
1320
|
|
300
|
12
|
502
|
518
|
502
|
500
|
465
|
405
|
1440
|
1484
|
|
350
|
14
|
762
|
778
|
762
|
600
|
715
|
643
|
1590
|
1646
|
|
400
|
16
|
838
|
854
|
838
|
600
|
970
|
876
|
1755
|
1810
|
|
450
|
18
|
914
|
930
|
914
|
680
|
1190
|
1076
|
1997
|
2150
|
|
500
|
20
|
991
|
1010
|
991
|
760
|
1655
|
1515
|
2192
|
2320
|
|
600
|
24
|
1143
|
1165
|
1143
|
915
|
2320
|
2114
|
2587
|
2730
|
|
650
|
26
|
1245
|
1270
|
1245
|
915
|
2900
|
2640
|
2890
|
2940
|
|
700
|
28
|
1346
|
1372
|
1346
|
915
|
3510
|
3210
|
3280
|
3350
|
|
750
|
30
|
1397
|
1422
|
1397
|
950
|
4100
|
3760
|
3510
|
3530
|
|
800
|
32
|
1524
|
1552
|
1524
|
-
|
5250
|
4864
|
-
|
3630
|
|
850
|
34
|
1626
|
1654
|
1626
|
-
|
-
|
-
|
-
|
-
|
|
900
|
36
|
1727
|
1756
|
1727
|
-
|
6940
|
6632
|
-
|
3820
|
|
1050
|
42
|
1981
|
-
|
1981
|
-
|
-
|
-
|
-
|
-
|
|
1200
|
48
|
*2235
|
-
|
*2235
|
-
|
-
|
-
|
-
|
-
|
*L to be confirmed by customers.
*All dimensions are in mm unless otherwise specified.
*Various types of end connections are available: SW, RF, FF, RTJ, BW and NPT, etc.
*Related products:
Views: Author：hbmetals Date:15/06/02
