API 600 Gate Valve Class 600

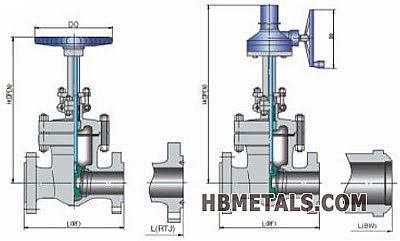

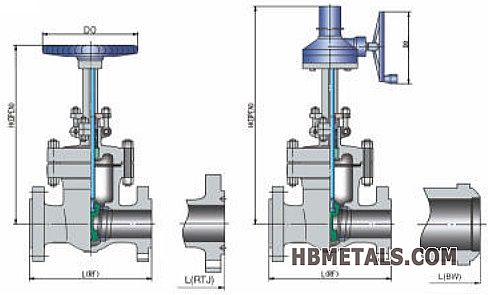

1. Typical Drawings of API 600 Gate Valve Class 600
2. Basic Dimensions of API 600 Gate Valve Class 600
|
Model
|
Z(5)40(1)H(W、Y)- 600Lb (C. P. R. PL. RL. I. H. V. A)
|
||||||||
|
Size
|
L(RF)
|
L(RTJ)
|
L (BW)
|
Do
|
WEIGHT(kg)
|
H(open)
|
|||
|
mm
|
in
|
RF
|
BW
|
Manual
|
Gear
|
||||
|
50
|
2
|
292
|
295
|
292
|
250
|
47
|
39
|
438
|
-
|
|
65
|
2 1/2
|
330
|
333
|
330
|
250
|
55
|
47
|
512
|
-
|
|
80
|
3
|
356
|
359
|
356
|
250
|
75
|
66
|
549
|
-
|
|
100
|
4
|
432
|
435
|
432
|
350
|
123
|
102
|
668
|
-
|
|
150
|
6
|
559
|
562
|
559
|
450
|
260
|
208
|
890
|
-
|
|
200
|
8
|
660
|
663
|
660
|
500
|
400
|
373
|
1109
|
1159
|
|
250
|
10
|
787
|
790
|
787
|
600
|
700
|
630
|
1268
|
1318
|
|
300
|
12
|
838
|
841
|
838
|
680
|
854
|
766
|
1458
|
1508
|
|
350
|
14
|
889
|
892
|
889
|
760
|
1112
|
1059
|
1640
|
1735
|
|
400
|
16
|
991
|
994
|
991
|
800
|
1317
|
1243
|
1825
|
1895
|
|
450
|
18
|
1092
|
1095
|
1092
|
915
|
1862
|
1768
|
1992
|
2155
|
|
500
|
20
|
1194
|
1200
|
1194
|
-
|
2200
|
2090
|
-
|
2304
|
|
600
|
24
|
1397
|
1407
|
1397
|
-
|
4560
|
4228
|
-
|
2700
|
|
650
|
26
|
1448
|
1461
|
1448
|
-
|
5120
|
4682
|
-
|
3020
|
|
700
|
28
|
1549
|
1562
|
1549
|
-
|
7450
|
6850
|
-
|
3120
|
|
750
|
30
|
1651
|
1664
|
1651
|
-
|
8114
|
7500
|
-
|
3230
|
|
800
|
32
|
1778
|
1794
|
1778
|
-
|
9150
|
8450
|
-
|
3540
|
|
850
|
34
|
1930
|
1959
|
1930
|
-
|
9830
|
-
|
-
|
3560
|
|
900
|
36
|
2083
|
2099
|
2083
|
-
|
10400
|
9490
|
-
|
3905
|
|
950
|
38
|
*2235
|
-
|
*2235
|
-
|
11100
|
-
|
-
|
3910
|
|
1050
|
42
|
*2438
|
-
|
*2438
|
-
|
-
|
-
|
-
|
-
|
*L to be confirmed by customers.
*All dimensions are in mm unless otherwise specified.
*Various types of end connections are available: SW, RF, FF, RTJ, BW and NPT, etc.
