ASME B16.47 Series A(MSS SP-44) WN RF Flange 400LB

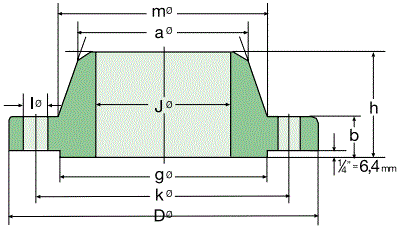

1. Drawing of ASME B16.47 Series A(MSS SP-44) WN Flange RF 400LB
2. Dimension & Weight of ASME B16.47 Series A(MSS SP-44) WN RF 400LB
|
Pipe
|
Flange Dimensions
|
Hub
|
Raised
Face |
Bolting Dimensions
|
Approx.
Weight |
|||||||
|
Norm.
Size |
OD
inch mm |
D
inch mm |
J
inch mm |
b
inch mm |
h
inch mm |
a
inch mm |
m
inch mm |
g
inch mm |
Bolt
Number |
l
inch mm |
k
inch mm |
Pounds Kilos |
|
26"
|
26,0
660,4 |
38 1/4
971,5 |
|
3 1/2
88,9 |
7 5/8
193,7 |
|
28 5/8
727,1 |
29 1/2
749,3 |
28
|
1 7/8
47,6 |
34 1/2
876,3 |
|
|
28"
|
28,0
711,2 |
40 1/4
1035,0 |
3 3/4
95,2 |
8 1/8
206,4 |
30 13/16
782,6 |
31 1/2
800,1 |
28
|
2
50,8 |
37
939,8 |
|||
|
30"
|
30,0
762,0 |
43
1092,2 |
4
101,6 |
8 5/8
219,1 |
32 15/16
836,6 |
33 3/4
857,2 |
28
|
2 1/8
54,0 |
39 1/4
996,9 |
|||
|
32"
|
32,0
812,8 |
45 1/4
1149,3 |
4 1/4
107,9 |
9 1/8
231,8 |
35
889,0 |
36
914,4 |
28
|
2 1/8
54,0 |
41 1/2
1054,1 |
|||
|
34"
|
34,0
863,6 |
47 1/2
1206,5 |
4 3/8
111,1 |
9 1/2
241,3 |
37 3/16
944,6 |
38
965,2 |
28
|
2 1/8
54,0 |
43 1/2
1104,9 |
|||
|
36"
|
36,0
914,4 |
50
1270,0 |
4 1/2
114,3 |
9 7/8
250,8 |
39 1/8
1000,1 |
40 1/4
1022,3 |
32
|
2 1/8
54,0 |
46
1168,4 |
|||
|
38"
|
38,0
965,2 |
47 1/2
1206,5 |
4 7/8
123,8 |
8 1/18
206,3 |
39 1/2
1003,3 |
40 3/4
1053,0 |
32
|
1 7/8
47,6 |
44
1117,6 |
|||
|
40"
|
40,0
1016,0 |
50
1270,0 |
5 1/8
130,1 |
8 1/2
215,9 |
41 1/2
1054,1 |
43
1092,2 |
32
|
2
50,8 |
46 1/4
1174,7 |
|||
|
42"
|
42,0
1066,8 |
52
1320,8 |
5 1/4
133,3 |
8 13/16
223,8 |
43 5/8
1108,0 |
45
1143,0 |
32
|
2
50,8 |
48 1/4
1225,5 |
|||
|
44"
|
44,0
1117,6 |
54 1/2
1384,3 |
5 1/2
139,7 |
9 13/16
233,3 |
45 5/8
1158,8 |
47 1/4
1200,1 |
32
|
2 1/8
53,9 |
50 1/2
1282,7 |
|||
|
46"
|
46,0
1168,4 |
56 3/4
1441,4 |
5 3/4
146,0 |
9 5/8
244,0 |
47 3/4
1212,8 |
49 1/2
1257,3 |
36
|
2 1/8
53,9 |
52 3/4
1339,8 |
|||
|
48"
|
48,0
1219,2 |
59 1/2
1511,3 |
6
152,4 |
10 1/8
257,1 |
49 7/8
1266,8 |
51 1/2
1308,1 |
28
|
2 3/8
60,3 |
55 1/4
1403,3 |
|||
|
50"
|
50,0
1270,0 |
61 3/4
1568,4 |
6 3/16
157,2 |
10 9/16
268,2 |
52
1320,8 |
53 5/8
1362,0 |
32
|
2 3/8
60,3 |
57 1/2
1460,5 |
|||
|
52"
|
52,0
1320,8 |
63 3/4
1619,2 |
6 3/8
161,9 |
10 7/8
276,2 |
54
1371,6 |
55 5/8
1412,8 |
32
|
2 3/8
60,3 |
59 1/2
1511,3 |
|||
|
54"
|
54,0
1371,6 |
67
1701,8 |
6 11/16
169,9 |
11 3/8
288,9 |
56 1/8
1425,5 |
57 7/8
1470,0 |
28
|
2 5/8
66,6 |
62 1/4
1581,1 |
|||
|
56"
|
56,0
1422,4 |
69
1752,6 |
6 7/8
174,6 |
11 3/4
298,4 |
58 1/4
1479,5 |
60 1/8
1527,1 |
32
|
2 5/8
66,6 |
64 1/4
1631,9 |
|||
|
58"
|
58,0
1473,2 |
71
1803,4 |
7
177,8 |
12 1/16
306,3 |
60 1/4
1530,3 |
62 1/8
1577,9 |
32
|
2 5/8
66,6 |
66 1/4
1682,7 |
|||
|
60"
|
60,0
1524,0 |
74 1/4
1885,9 |
7 5/16
185,7 |
12 9/16
319,0 |
62 3/8
1584,3 |
64 3/8
1635,1 |
32
|
2 7/8
73,0 |
69
1752,6 |
|||
* J & a dimensions to be specified by the purchaser.
