ASME B16.47 Series A(MSS SP-44) WN RF Flange 900LB

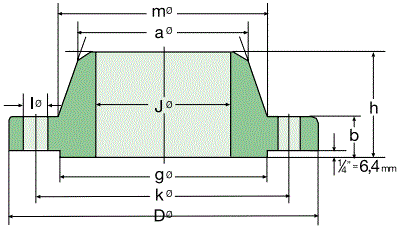

1. Drawing of ASME B16.47 Series A(MSS SP-44) WN Flange RF 900LB
2. Dimension & Weight of ASME B16.47 Series A(MSS SP-44) WN RF 900LB
|
Pipe
|
Flange Dimensions
|
Hub
|
Raised
Face |
Bolting Dimensions
|
Approx.
Weight |
|||||||
|
Norm.
Size |
OD
inch mm |
D
inch mm |
J
inch mm |
b
inch mm |
h
inch mm |
a
inch mm |
m
inch mm |
g
inch mm |
Bolt
Number |
l
inch mm |
k
inch mm |
Pounds Kilos |
|
26"
|
26,0
660,4 |
42 3/4
1085,8 |
|
5 1/2
139,7 |
11 1/4
285,7 |
|
30 1/2
774,4 |
29 1/2
749,3 |
20
|
2 7/8
73,0 |
37 1/2
952,5 |
|
|
28"
|
28,0
711,2 |
46
1168,4 |
5 5/8
142,9 |
11 3/4
298,4 |
32 3/4
831,8 |
31 1/2
800,1 |
20
|
3 1/8
79,4 |
40 1/4
1022,3 |
|||
|
30"
|
30,0
762,0 |
48 1/2
1231,9 |
5 7/8
149,2 |
12 1/4
311,1 |
35
889,0 |
33 3/4
857,2 |
20
|
3 1/8
79,4 |
42 3/4
1085,8 |
|||
|
32"
|
32,0
812,8 |
51 1/4
1314,4 |
6 1/4
158,7 |
13
330,2 |
37 1/4
946,1 |
36
914,4 |
20
|
3 3/8
85,7 |
45 1/2
1155,7 |
|||
|
34"
|
34,0
863,6 |
55
1397,0 |
6 1/2
165,1 |
13 3/4
349,2 |
39 5/8
1006,5 |
38
965,2 |
20
|
3 5/8
92,1 |
48 1/4
1225,5 |
|||
|
36"
|
36,0
914,4 |
57 1/2
1460,5 |
6 3/4
171,4 |
14 1/4
361,9 |
41 7/8
1063,6 |
40 1/4
1022,3 |
20
|
3 5/8
92,1 |
50 3/4
1289,0 |
|||
|
38"
|
38,0
965,2 |
57 1/2
1460,5 |
7 1/2
190,5 |
13 7/8
352,4 |
42 1/4
1073,1 |
43 1/4
1022,3 |
20
|
3 5/8
92,1 |
50 3/4
1289,1 |
|||
|
40"
|
40,0
1016,0 |
59 1/2
1511,3 |
7 3/4
196,8 |
14 5/16
363,5 |
44 3/8
1127,1 |
45 3/4
1162,0 |
24
|
3 5/8
92,1 |
52 3/4
1339,8 |
|||
|
42"
|
42,0
1066,8 |
61 1/2
1562,1 |
8 1/8
206,3 |
14 5/8
371,4 |
46 5/16
1176,3 |
47 3/4
1212,8 |
24
|
3 5/8
92,1 |
54 3/4
1390,6 |
|||
|
44"
|
44,0
1117,6 |
64 7/8
1647,8 |
8 7/16
214,3 |
15 3/8
390,5 |
48 5/8
1235,0 |
50
1270,0 |
24
|
3 7/8
98,4 |
57 5/8
1463,6 |
|||
|
46"
|
46,0
1168,4 |
68 1/4
1733,5 |
8 7/8
225,4 |
16 3/16
411,1 |
50 7/8
1292,2 |
52 1/2
1335,5 |
24
|
4 1/8
104,7 |
60 1/2
1536,7 |
|||
|
48"
|
48,0
1219,2 |
70 1/4
1784,3 |
9 3/16
233,4 |
16 1/2
417,5 |
52 7/8
1343,0 |
54 1/2
1384,3 |
24
|
4 1/8
104,7 |
62 1/2
1587,5 |
|||
* J & a dimensions to be specified by the purchaser.
