ASME B16.47 Series A(MSS SP-44) WN RF Flange 600LB

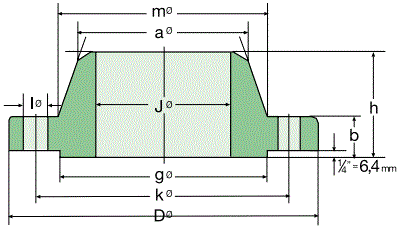

1. Drawing of ASME B16.47 Series A(MSS SP-44) WN Flange RF 600LB
2. Dimension & Weight of ASME B16.47 Series A(MSS SP-44) WN RF 600LB
|
Pipe
|
Flange Dimensions
|
Hub
|
Raised
Face |
Bolting Dimensions
|
Approx.
Weight |
|||||||
|
Norm.
Size |
OD
inch mm |
D
inch mm |
J
inch mm |
b
inch mm |
h
inch mm |
a
inch mm |
m
inch mm |
g
inch mm |
Bolt
Number |
l
inch mm |
k
inch mm |
Pounds Kilos |
|
26"
|
26,0
660,4 |
40
1016,0 |
|
4 1/4
107,9 |
8 3/4
222,2 |
|
29 7/16
747,7 |
29 1/2
749,3 |
28
|
2
50,8 |
36
914,4 |
|
|
28"
|
28,0
711,2 |
42 1/4
1073,1 |
4 3/8
111,1 |
9 1/4
234,9 |
31 5/8
803,3 |
31 1/2
800,1 |
28
|
2 1/8
54,0 |
38
965,2 |
|||
|
30"
|
30,0
762,0 |
44 1/2
1130,3 |
4 1/2
114,3 |
9 3/4
247,6 |
33 15/16
862,0 |
33 3/4
857,2 |
28
|
2 1/8
54,0 |
40 1/4
1022,3 |
|||
|
32"
|
32,0
812,8 |
47
1193,8 |
4 5/8
117,5 |
10 1/4
260,3 |
36 1/8
917,6 |
36
914,4 |
28
|
2 3/8
60,3 |
42 1/2
1079,5 |
|||
|
34"
|
34,0
863,6 |
49
1244,6 |
4 3/4
120,6 |
10 5/8
269,9 |
38 5/16
973,1 |
38
965,2 |
28
|
2 3/8
60,3 |
44 1/2
1130,0 |
|||
|
36"
|
36,0
914,4 |
51 3/4
1314,4 |
4 7/8
123,8 |
11 1/8
282,6 |
40 5/8
1031,9 |
40 1/4
1022,3 |
28
|
2 5/8
66,7 |
47
1193,8 |
|||
|
38"
|
38,0
965,2 |
50
1270,0 |
6
152,4 |
10
254,0 |
40 1/4
1022,3 |
40 1/2
1054,1 |
28
|
2 3/8
60,3 |
45 3/4
1162,0 |
|||
|
40"
|
40,0
1016,0 |
52
1320,8 |
6 1/4
158,7 |
10 3/8
263,5 |
42 1/4
1073,1 |
43 3/4
1111,2 |
32
|
2 3/8
60,3 |
47 3/4
1212,8 |
|||
|
42"
|
42,0
1066,8 |
55 1/4
1403,3 |
6 5/8
168,2 |
11
279,4 |
44 3/8
1127,1 |
46
1168,4 |
28
|
2 5/8
66,7 |
50 1/2
1282,7 |
|||
|
44"
|
44,0
1117,6 |
57 1/4
1454,2 |
6 13/16
173,0 |
11 3/8
288,9 |
46 1/2
1181,1 |
48 1/4
1225,5 |
32
|
2 5/8
66,7 |
52 1/2
1335,5 |
|||
|
46"
|
46,0
1168,4 |
59 1/4
1511,3 |
7 1/16
179,3 |
11 13/16
300,0 |
48 5/8
1235,1 |
50 1/4
1276,3 |
32
|
2 5/8
66,7 |
54 3/4
1390,6 |
|||
|
48"
|
48,0
1219,2 |
62 3/4
1593,8 |
7 1/16
188,9 |
12 7/16
314,7 |
50 3/4
1289,0 |
52 1/2
1335,5 |
32
|
2 7/8
73,0 |
57 1/2
1460,5 |
|||
|
50"
|
50,0
1270,0 |
65 3/4
1670,0 |
7 3/4
196,8 |
12 15/16
328,6 |
50 7/8
1292,2 |
54 1/2
1384,3 |
28
|
3 1/8
79,3 |
60
1524,0 |
|||
|
52"
|
52,0
1320,8 |
67 3/4
1720,8 |
8
203,2 |
13 1/4
336,5 |
54 7/8
1393,8 |
56 1/2
1435,1 |
32
|
3 1/8
79,3 |
62
1574,8 |
|||
|
54"
|
54,0
1371,6 |
70
1778,0 |
8 1/4
209,5 |
13 3/4
349,2 |
57
1447,8 |
58 3/4
1492,2 |
32
|
3 1/8
79,3 |
64 1/4
1631,9 |
|||
|
56"
|
56,0
1422,4 |
73
1854,2 |
8 9/16
217,4 |
14 1/4
361,9 |
59 1/8
1501,7 |
60 3/4
1543,0 |
32
|
3 3/8
85,7 |
66 3/4
1695,4 |
|||
|
58"
|
58,0
1473,2 |
75
1905,0 |
8 3/4
222,2 |
14 9/16
369,8 |
61 1/8
1552,5 |
63
1600,2 |
32
|
3 3/8
85,7 |
68 3/4
1746,2 |
|||
|
60"
|
60,0
1524,0 |
78 1/2
1993,9 |
9 3/16
233,4 |
15 5/16
388,9 |
63 3/8
1609,7 |
65 1/4
1657,3 |
28
|
3 5/8
92,0 |
71 3/4
1822,4 |
|||
* J & a dimensions to be specified by the purchaser.
