ASME B16.47 Series A(MSS SP-44) WN RTJ Flange 900LB

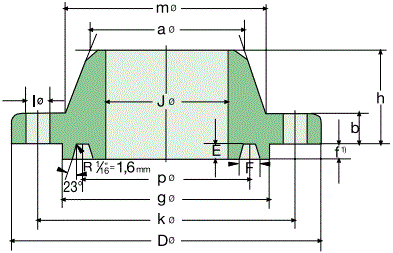

1. Drawing of ASME B16.47 Series A(MSS SP-44) WN Flange RTJ 900LB

2. Dimension & Weight of ASME B16.47 Series A(MSS SP-44) WN RTJ 900LB

Pipe

Flange Dimensions

Hub

Raised
Face

Drilling Dimensions

Ring Joint

Approx.
Weight

NPS

OD
in.
mm

D
in.
mm

J
in.
mm

b
in.
mm

h
in.
mm

a
in.
mm

m
in.
mm

g
in.
mm

No. of
Bolts

l
in.
mm

k
in.
mm

p
in.
mm

E
in.
mm

F
in.
mm

Pounds
Kilos

26"

26,0
660,4

42 3/4
1085,8

5 1/2
139,7

11 1/4
285,7

30 1/2
774,4

32 3/4
831,8

2 7/8
73,0

37 1/2
952,5

29 1/2
749,3

11/16
17,5

1 3/16
30,2

28"

28,0
711,2

46
1168,4

5 5/8
142,9

11 3/4
298,4

32 3/4
831,8

35
889,0

3 1/8
79,4

40 1/4
1022,3

31 1/2
800,1

11/16
17,5

1 5/16
33,3

30"

30,0
762,0

48 1/2
1231,9

5 7/8
149,2

12 1/4
311,1

35
889,0

37 1/4
946,1

3 1/8
79,4

42 3/4
1085,8

33 3/4
857,2

11/16
17,5

1 5/16
33,3

32"

32,0
812,8

51 3/4
1314,4

6 1/4
158,7

13
330,2

37 1/4
946,1

39 1/2
1003,3

3 3/8
85,7

45 1/2
1155,7

36
914,4

11/16
17,5

1 5/16
33,3

34"

34,0
863,6

55
1397,0\

6 1/2
165,1

13 3/4
349,2

39 5/8
1006,5

42
1066,8

3 5/8
92,1

48 1/4
1225,5

38
965,2

13/16
20,6

1 7/16
36,5

36"

36,0
914,4

57 1/2
1460,5

6 3/4
171,4

14 1/4
361,9

41 7/8
1063,6

44 1/4
1123,9

3 5/8
92,1

50 3/4
1289,0

40 1/4
1022,3

13/16
20,6

1 7/16
36,5

* J & a dimensions to be specified by the purchaser.

* Materials available: carbon steel, Cr-Mo low alloy, stainless steel, Nickel Alloy, etc.
