ASME B16.47 Series A(MSS SP-44) WN RTJ Flange 300LB

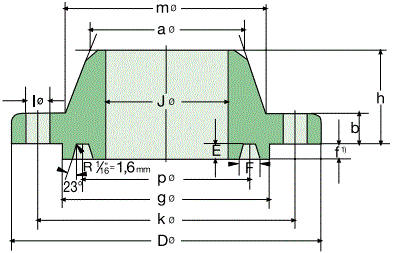

1. Drawing of ASME B16.47 Series A(MSS SP-44) WN Flange RTJ 300LB

2. Dimension & Weight of ASME B16.47 Series A(MSS SP-44) WN RTJ 300LB

Pipe

Flange Dimensions

Hub

Raised
Face

Drilling Dimensions

Ring Joint

Approx.
Weight

NPS

OD
in.
mm

D
in.
mm

J
in.
mm

b
in.
mm

h
in.
mm

a
in.
mm

m
in.
mm

g
in.
mm

No. of
Bolts

l
in.
mm

k
in.
mm

p
in.
mm

E
in.
mm

F
in.
mm

Pounds
Kilos

26"

26,0
660,4

38 1/4
971,5

3 1/8
79,4

7 1/4
184,1

28 3/8
720,7

31 7/8
809,6

1 3/4
44,4

34 1/2
876,3

29 1/2
749,3

1/2
12,7

25/32
19,8

28"

28,0
711,2

40 3/4
1035,0

3 3/8
85,7

7 3/4
196,8

30 1/2
774,7

33 7/8
860,4

1 3/4
44,4

37
939,8

31 1/2
800,1

1/2
12,7

25/32
19,8

30"

30,0
762,0

43
1092,2

3 5/8
92,1

8 1/4
209,5

32 9/16
827,1

36 1/8
917,6

1 7/8
47,6

39 1/4
996,9

33 3/4
857,2

1/2
12,7

25/32
19,8

32"

32,0
812,8

45 1/4
1149,3

3 7/8
98,4

8 3/4
222,2

34 11/16
881,1

38 3/4
984,2

2
50,8

41 1/2
1054,1

36
914,4

9/16
14,3

29/32
23,0

34"

34,0
863,6

47 1/2
1206,5

4
101,6

9 1/8
231,8

36 7/8
936,6

40 3/4
1035,0

2
50,8

43 1/2
1104,9

38
965,2

9/16
14,3

29/32
23,0

36"

36,0
914,4

50
1270,0

4 1/8
104,8

9 1/2
241,3

39
990,6

43
1092,2

2 1/8
54,0

46
1168,4

40 1/4
1022,3

9/16
14,3

29/32
23,0

* J & a dimensions to be specified by the purchaser.

* Materials available: carbon steel, Cr-Mo low alloy, stainless steel, Nickel Alloy, etc.
* Related products:

ASME B16.47 WN RF(MSS SP 44)
300LB	400LB	600LB	900LB

ASME B16.47 WN RTJ(MSS SP-44)
300LB	400LB	600LB	900LB
